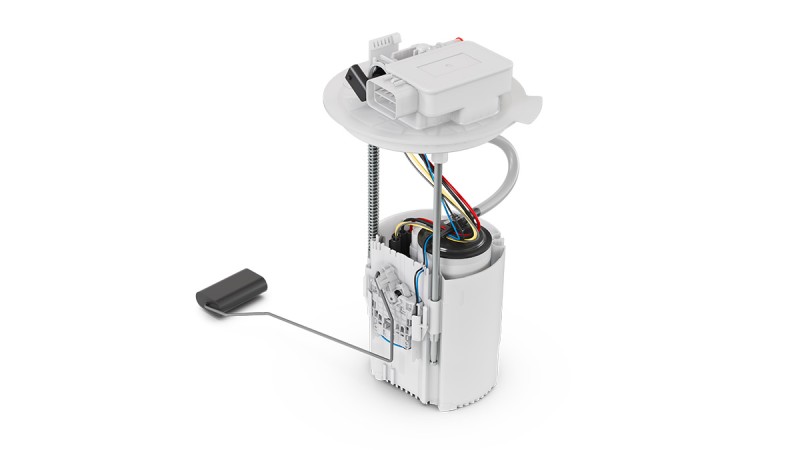

Fuel Delivery Module with Electronics (NG3)
In-tank fuel delivery modules with integrated electronics for gasoline engines with the opportunity to integrate various functions. It delivers pressurized fuel to the engine for entry level vehicles, two-wheelers and recreational vehicles.
Highlights
- Cost-effective
- Configuration for high performance requirements available
- Controllable to 0 l/h flow
Advantages
- Cost-effective: Module with high flange integration and serviceable elements
- Configuration for high performance requirements available (with dual pumps, level sensors and jet pumps)
- Electronics controller can be integrated for maximum electrical efficiency, as well as weight and volume reduction (CO₂ reduction)
Features
- Hydraulic performance: Up to 115 l/h at 5.0 bar (max. pressure 6.5 bar)
- Controllable to 0 l/h flow (with maintaining pressure)
- Up to 30 % system efficiency (12 V / 5 bar)
- Brushless EC pumps or brushed-type DC pumps applicable
- Configuration options include: Fuel level sensor, fine filter, pressure regulator, electronic controller, vent valves and tank leakage detection sensor
